Product details
Description

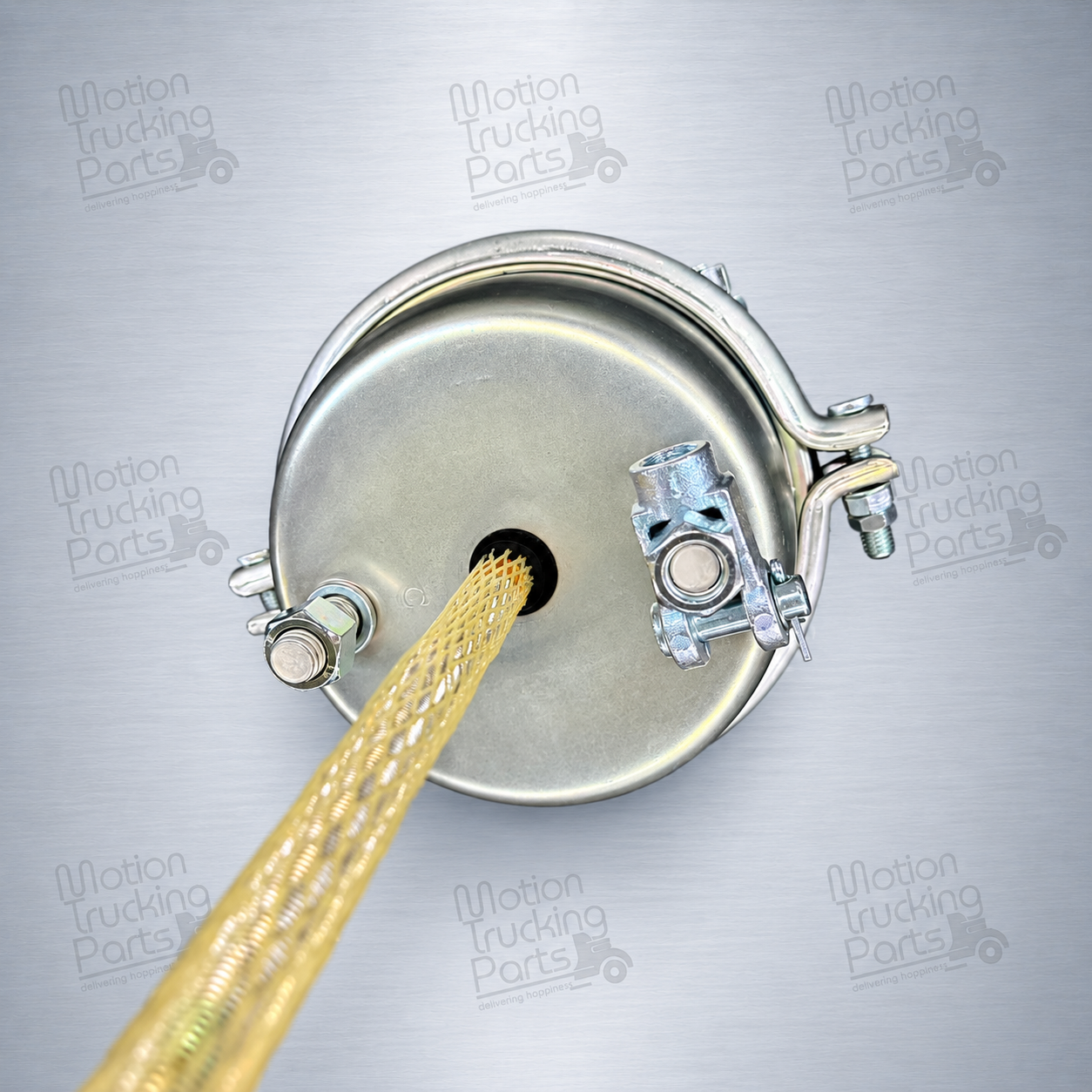

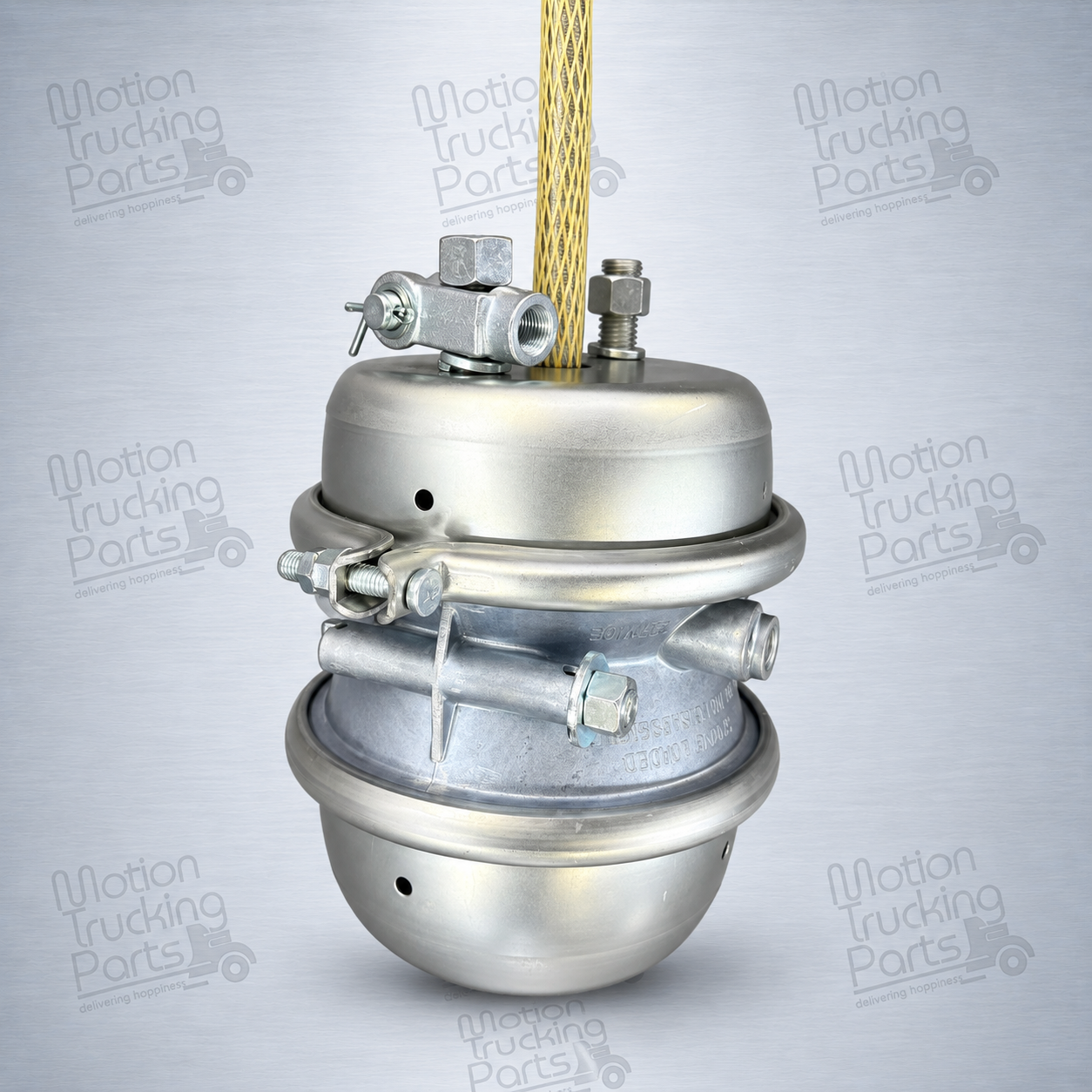

Heavy-duty Type 30/30 combination spring brake chamber designed for commercial truck and trailer air brake systems. Features a 2.5" standard stroke and 13.05" push rod for dependable service, parking, and emergency braking.
Specifications
Type: 30/30 Combination Spring Brake
Stroke: 2.5" Standard Stroke
Push Rod Length: 13.05"
Application: Heavy-Duty Trucks & Trailers
Cross Reference Part Numbers
Alliance: ABP N42A CTS3030 / ABP N42A 33030CD
Navistar / International: FLT3030SCB20
Bendix: NT3030STD-78
Haldex: GC3030
Features
Heavy-duty construction
Standard 30/30 configuration
Service, parking & emergency braking functions
Suitable for commercial trucks, tractors and trailers
Note: Cross references are for identification purposes. Verify stroke, push rod length, mounting and configuration before installation.
